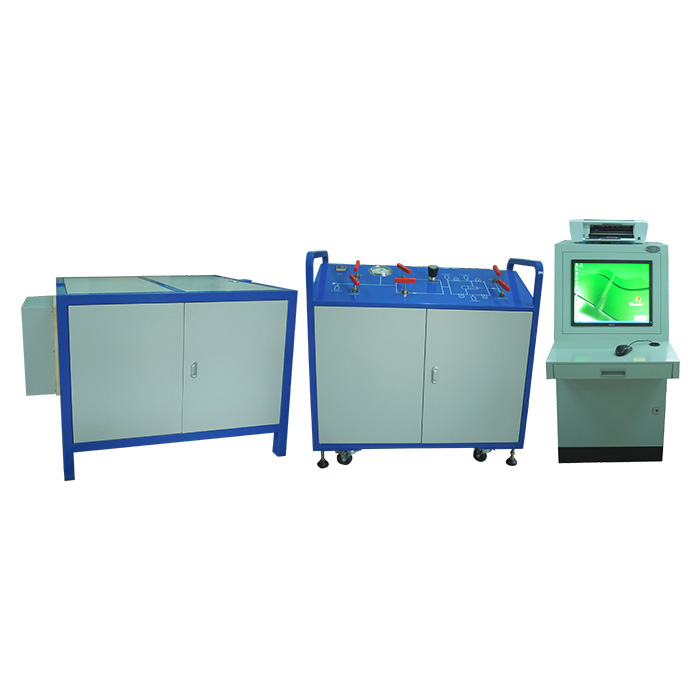

High and low temperature hydrostatic test bench HPU-1303
Application
Suitable for dynamic cylinder hydrostatic test and recirculation test.
Features
1.Pump station uses electric plunger pump as the pressure source and can absorb oil in high and low temperature. Assemble high temperature reservoir in pump station. Compact and easy to operate.
2.Include European and American bands hydraulic components, e.g. NOVA SWISS high pressure needle valve and pneumatic control valve. We are the sole agency of NOVA SWISS products in China. Easy silk-screen schematic diagram in the panel of operation cabinet. Safe and reliable. Easy to operate.
3.Computer cabinet includes high and low temperature testing software developed by Telide independently. Equipped with IPC, printer, etc in computer cabinet. Visual interface and human engineering design benefit operation, control and observation.
Parameters
1.Test medium: hydraulic oil, -55℃~150℃;
2.Test pressure: 0.1bar-315bar;
3.Power supply: 380VAC,50HZ;
4.Dimensions and weight:
pump station: L1360*W950*H960,415kg;
control console: L1100*W500*H1008,208kg;
computer: L950*W730*H1170,145kg;
5.More: fuel tank 100L.
