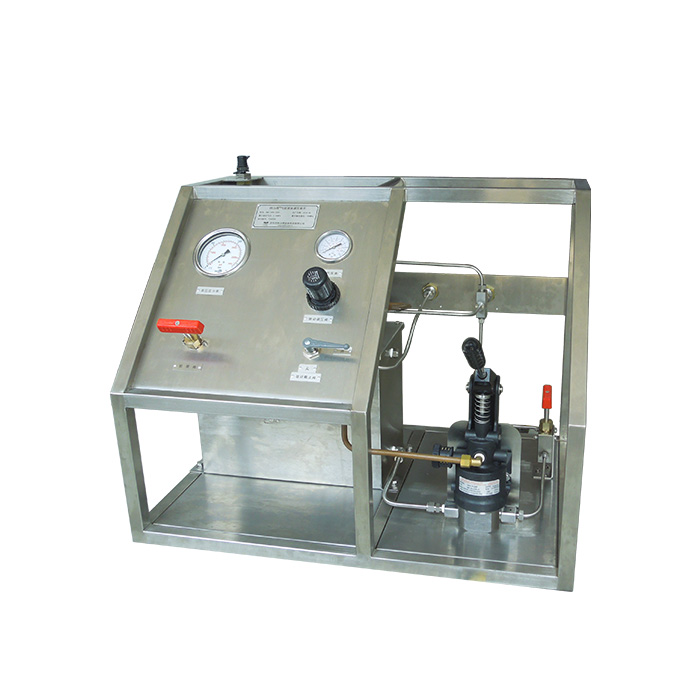

Manual and pneumatic power unit with reservoir HMU-1300-225H
Application
1.Suitable for safety valve test to offshore production platform;
2.Suitable for tool test and pressure test to hoses, pipes, valves, fittings and other hydraulic vessels and products.
Features
1.Stainless steel tubular frame unit with the addition of a 10 liters reservoir and dual use of manual and pneumatic.
2.Reservoir with removable top cover and drain. Panel mounted pump regulator, air gauge and high pressure drain valve.
3.Manifold mounted 4" filled SS gauge, regulator, air gauge, regulator and high pressure drain valve.
(This unit is shown with two (optional) HP outlet gauges for redundancy)
Parameters
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum output pressure 1550 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min, 6.9 bar;
4.Dimensions and weight: L750*W520*H580(mm), 45kg.
